Block Diagram Matlab - There are two block that I can't find, maybe can be made. can someone make for me? The whole diagram is converter control in dq frame. Thank you. Piecewise time input (block diagram). Learn more about simulink, transfer function, control. A block diagram consists of blocks that represent different parts of a system and signal lines that define the relationship between the blocks. Block diagrams are widely used by engineers for controls, signal processing, communications, and mechatronics..

I am running 2015b on a Mac with Mavericks. In Simulink, I select "Print" from the file menu. There is an option to save the file as pdf. The resulting figure is not suitable for direct inclusion into e.g. a LaTeX document as there is a great amount of white space around the central figure.. In this phase, the Simulink engine allocates memory needed for working areas (signals, states, and run-time parameters) for execution of the block diagram. It also allocates and initializes memory for data structures that store run-time information for each block.. • Simulink is an input/output device GUI block diagram simulator. • To open Simulink, type in the MATLAB work space – >>simulink . The Library Editor • >>simulink • Simulink opens with the Library Browser • Library Browser is used to build types consult the MATLAB Simulink.

At each time step, each block computes its outputs from its inputs. Once all the signals in a diagram are computed at a given time step, Simulink determines the next time step (based on the model configuration and numerical solver algorithms) and advances the simulation clock.. The block diagram from Figure 2 can be directly implemented in SIMULINK, as shown in the figure Figure 8: omega To Workspace t Clock To Workspace angular speed s 1 Step Input Ls+R K(s) Armature Js+b 1 Load + − K theta To Workspace angle Figure 8: SIMULINK block diagram of the DC motor. Set the simulation parameters and run the simulation to see the step response.. MATLAB (MATrix LABoratory) is a software package that is widely used in control systems design. Simulink is a graphical front end to MATLAB that allows you to easily create models of dynamical systems in form of block diagrams..

TRANSFER FUNCTIONS AND BLOCK DIAGRAMS 1. Introduction 2. Transfer Function of Linear Time-Invariant (LTI) Systems 3. Block Diagrams 4. Multiple Inputs 5. Transfer Functions with MATLAB 6. Time Response Analysis with MATLAB 1.. My task is to create the Simulink block diagram in the picture. Please bare in mind that English isn't my native language. As far as I've figured it out, it has something to do with a heaviside function, but I have no idea how to implement that into a block diagram.. There's no way to convert it directly. You do your project on simulink or on matlab's m code, you can also do in both at the same time but simulink parts can't be converted unless you make equivalent functions in your m code..

The equations in the block diagram above are given for the estimate . It is conventional to write the combined equations for the system plus observer using the. Block diagrams 10 - video utorial sheet on nested loops and use of MATLAB Tutorial sheet on block diagrams with nested loops. Also shows how MATLAB could be used to compute and illustrate overall behaviour of signals in the diagram..

Estimate the Transfer Function of an Unknown System - MATLAB & Simulink To extract the magnitude portion of this complex estimate, use the Abs block. To convert the result into dB, the system uses a dB (1 ohm) block.
Introduction to Contact Modeling » Racing Lounge - MATLAB & Simulink These forces can then be summed up and passed into the Integrator blocks as shown below.

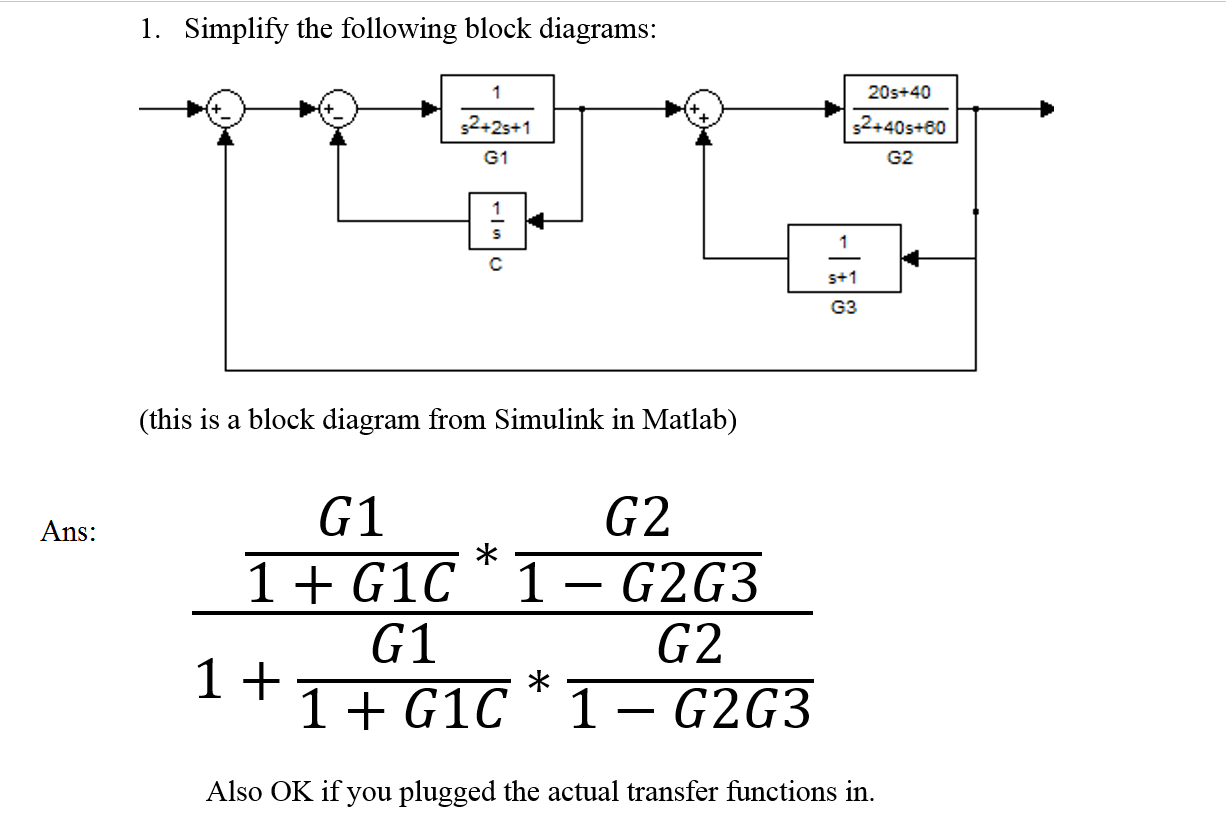

Solved: Simplify The Following Block Diagrams: (this Is A ... Solved: Simplify The Following Block Diagrams: (this Is A ... | Chegg.com
a) Block diagram of DS1104 R&D controller board. (b) MATLAB-dSPACE ... (a) Block diagram of DS1104 R&D controller board. (b) MATLAB-
hardware in the loop simulation for ardupilot mega - DIY Drones ... simulation control dan ardupilot hardware control. the following picture is the block diagram for stabilization control mode in matlab/simulink :
